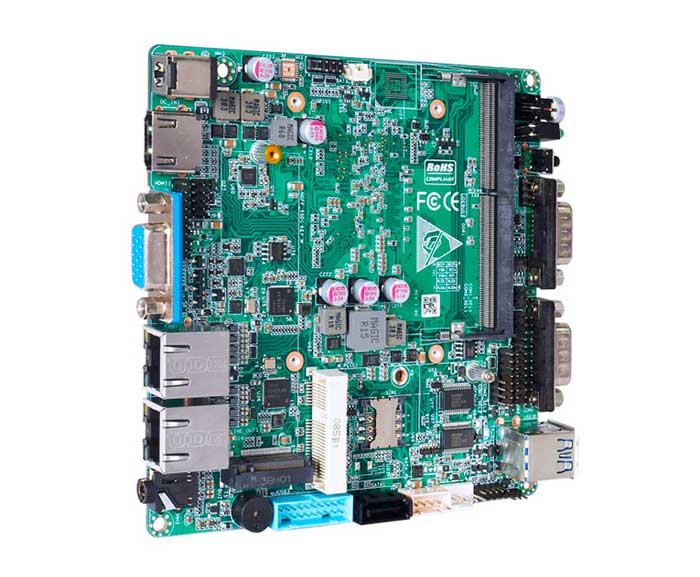

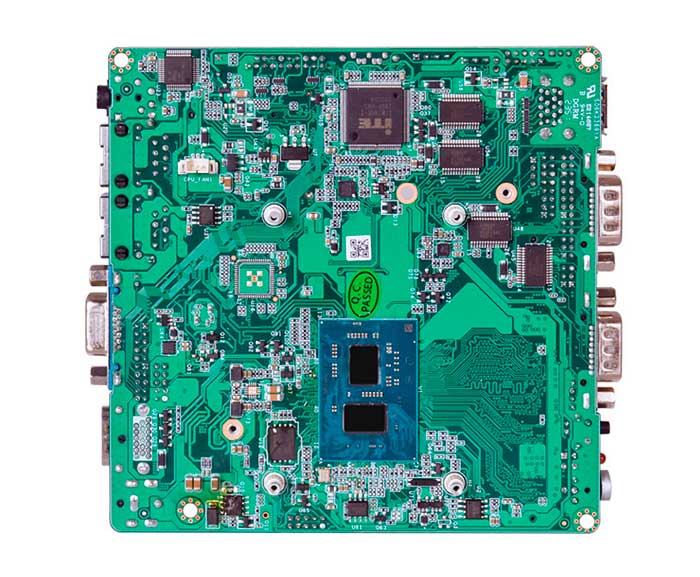

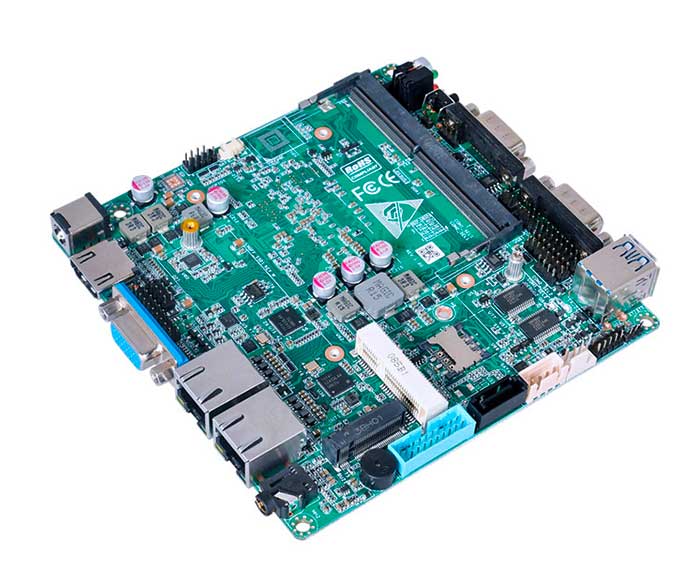

Description :
◆ Onboard Intel Elkhart Lake series processor;
◆ 2 * Intel i226-V network;
◆ 1 * VGA, 1 * HD-MI 2.0, TPM2.0 (optional);
◆ 6 * COM, onboard eMMC optional;
◆ DC 12V, 60W;
◆ Size: 120x120 mm
|
Processor |
Onboard Intel Elkhart Lake series processor |
|
|
EFI BIOS |
|
Memory |
1 * DDR4 SO-DIMM, supports up to 32 GB |
|
Display |
1 * VGA, maximum resolution 1920x1200 |
|
|
1 * HDMI2.0, maximum resolution 4K@60Hz |
|
|
HDMI+VGA synchronous or asynchronous display |
|
Storage |
1 * SATA3.0 |
|
|
1 * M.2 2280 M-Key (PCIe3.0 2x/SATA3.0, hardware selection) |
|
|
Onboard eMMC, 32GB/64GB/128GB optional |
|
Network |
2 * Intel i226-V network (LAN2 optional Intel i211) |
|
Sound card |
ALC897 |
|
Board edge I/O interface |
1 * VGA, 1 * HDMI |
|
|
2 * USB3.0, 2 * DB9 COM |
|
|
1 * DC JACK, 2 * LAN |
|
On-board expansion Interface/function |
0-255 seconds, providing watchdog routine |
|
|

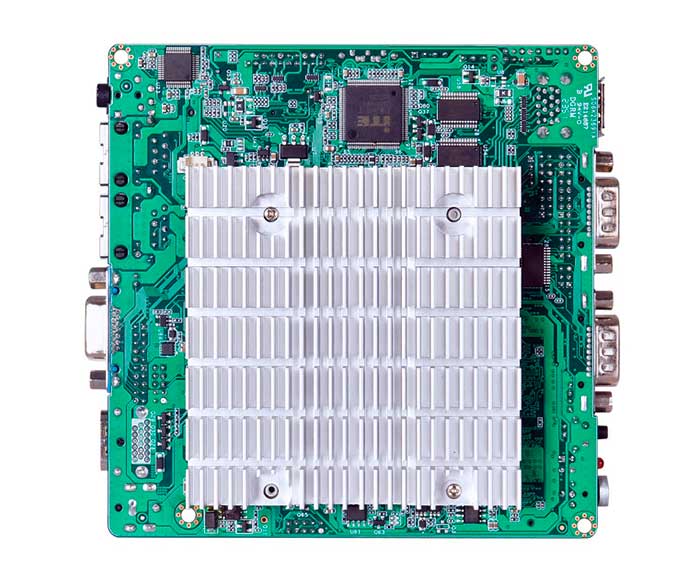

Aluminum fanless heatsink (the motherboard has a reserved fan interface that supports automatic and manual fan speed adjustment) |
|
|
4 * USB2.0 pin headers, 2 x 5Pin, pitch 2.0mm |
|
|
6 * COM port (COM1/2 is RS232 /RS485 jumper optional, COM3/4/5/6 is RS232) |
|
|
8-bit GPIO, 2 x 5Pin, pitch 2.0mm |
|
|
1 * Mini PCIe (PCIe + USB2.0 protocol) |
|
Power Supply |
DC 12V, 60W |
|
Working Environment |
Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation |
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, no condensation |
|
Operating system |
Windows10, Windows11, Linux |
|
Size |
120x120mm |
|
Weight |
260g including heatsink, 130g without heatsink |
